Catalog Number - 68040-SP-PG1

Cogent NP Amino Semi Prep Guard Column Cartridges are packed with the same propyl amino bonded stationary phase used in Cogent NP Amino semi-preparative columns. Manufactured on high-purity silica with an amino-functionalized propyl ligand, these guard cartridges protect the semi-preparative column from particulates, strongly retained contaminants, and sample matrix components that can reduce chromatographic performance and shorten column life. The chemistry is suitable for both Normal Phase and HILIC applications and provides the same USP L8 selectivity as the semi-preparative column it protects.

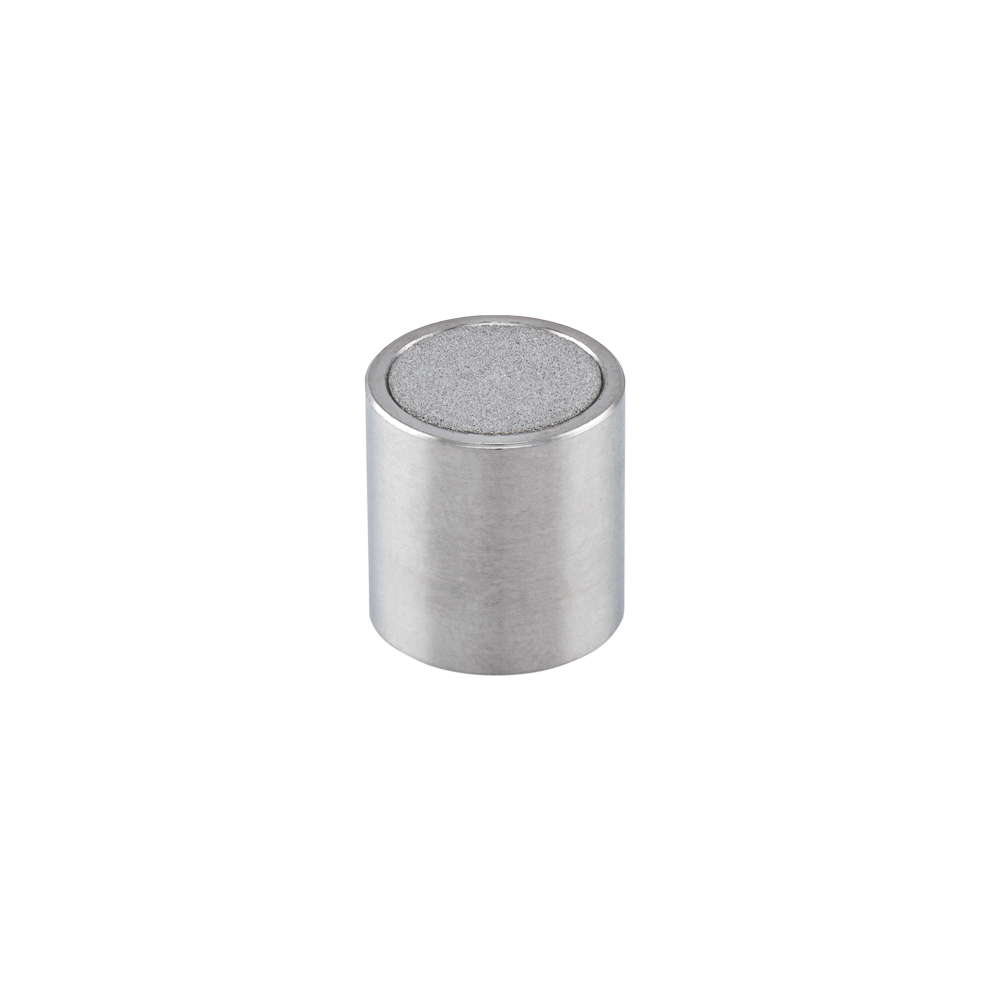

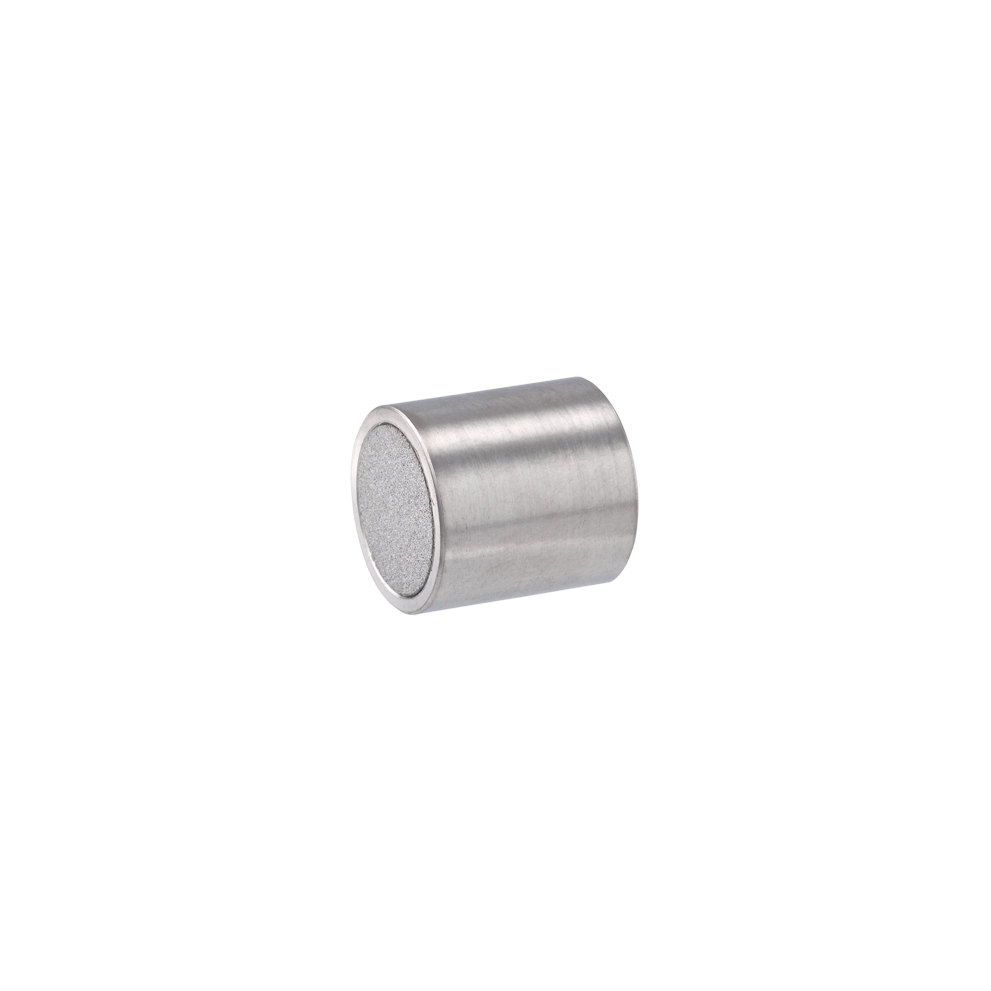

68040-SP-PG1 is a semi-preparative guard column cartridge packed with 10 µm NP Amino particles featuring a 100 Å pore size in a 10 mm ID x 10 mm format. Installed ahead of the semi-preparative column, it captures contaminants before they reach the analytical bed, helping maintain chromatographic efficiency, improve reproducibility, and extend column lifetime in demanding purification applications.

These guard cartridges are specifically designed for use with 10 mm ID Cogent NP Amino Semi Prep Columns and are housed in durable stainless-steel hardware with stainless-steel frits for reliable operation under semi-preparative flow conditions.

Key Benefits

• NP Amino stationary phase

• USP L8 equivalent chemistry

• Propyl amino bonded phase

• High-purity silica support

• Suitable for Normal Phase chromatography

• Suitable for HILIC applications

• Protects semi-preparative columns from particulates and contaminants

• Helps maintain column efficiency and reproducibility

• Extends semi-preparative column lifetime

• Stainless steel cartridge construction

Typical Applications

• Semi-preparative chromatography

• USP L8 methods

• HILIC separations

• Normal Phase chromatography

• Sugar purification

• Carbohydrate purification

• Organic acid purification

• Pharmaceutical purification

• Sample cleanup prior to purification

• Semi-preparative column protection

Specifications

• Product Type: Semi Prep Guard Column Cartridges

• Stationary Phase: NP Amino

• USP Classification: L8

• Chromatography Mode: Normal Phase / HILIC

• Bonded Phase: Propyl Amino

• Endcapping: Not Endcapped

• Particle Size: 10 µm

• Pore Size: 100 Å

• Cartridge Dimensions: 10 mm ID x 10 mm

• Hardware Material: Stainless Steel

• Frit Material: Stainless Steel

• Quantity: 5/PK

• Brand: Cogent

Guard Column Holder Requirement

• A Cogent 10 mm ID Prep Guard Column Holder is required for use with these guard column cartridges.

• View the Cogent 10 mm ID Prep Guard Column Holder (83000-SP-GH)

Special Order Item Information

• Contact Customer Service for quotation, lead time, and ordering assistance.

• Learn more about Special Order Items and ordering policies.

Important Notes

• Packed and shipped in Normal Phase solvents

• Suitable for both Normal Phase and HILIC chromatographic modes

• Designed for use with 10 mm ID NP Amino Semi Prep Columns

• Helps protect semi-preparative columns from contamination and premature fouling

• A Cogent 10 mm ID Prep Guard Column Holder (83000-SP-GH) is required

• Requires an HPLC system capable of supporting semi-preparative flow rates

• This is a Special Order Item

  ---
